Fiber Optic Polishing Jig for LC UPC Connector with First Pass Yield 98-100% UPC Return Loss ≥55dB and Insertion Loss ≤0.20dB

1
MOQ
Fiber Optic Polishing Jig for LC UPC Connector with First Pass Yield 98-100% UPC Return Loss ≥55dB and Insertion Loss ≤0.20dB
Kenmerken Galerij Productomschrijving Verzoek om een Citaat
Kenmerken
Specificaties
Type connector: LC/UPC
Materiaal: Roestvrij staal S136
Afmetingen: 174*174*26mm
Maximale capaciteit: 40 posities voor LC PC-connectoren
Netto gewicht: 1.3 kg
Grof gewicht: 2kgs
Ferrumendiameter: 1,25 mm
Invoegverlies: ≤0,20db
Retournelverlies: ≥ 55 dB (UPC)
Beëindigen-gezicht Type: UPC
Krommingsstraal: 5-25 mm
Apex-offset: 0-50 μm
Vezelhoogte: -100~+50μm
Hoek: 8,00+/-0,50° (APC)
Eerste doorgangsopbrengst: 98%~100%
Markeren:

First Pass Yield 98-100% Polishing Fixture

,

UPC Return Loss ≥55dB Fiber Optic Polishing Jig

,

Insertion Loss ≤0.20dB Optical Polishing Fixture
Basis informatie
Plaats van herkomst: Guangdong, China
Merknaam: Chuanglixun
Modelnummer: LC-UPC-24, LC-UPC-40, LC-UPC-48
Betalen & Verzenden Algemene voorwaarden
Productomschrijving

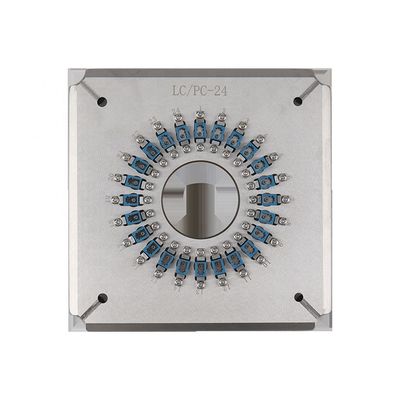

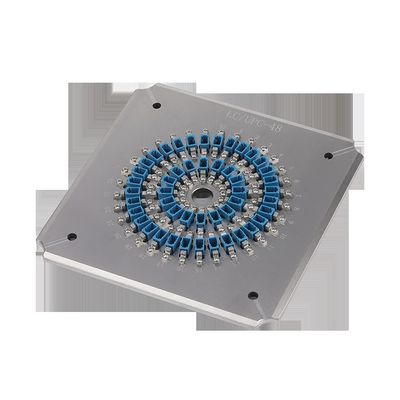

Fiber Optic Polishing Fixture For LC UPC Connector
This high-stability fiber polishing fixture delivers excellent surface quality for LC UPC connectors. Constructed from heat-treated hardened steel S2316 for extended service life, it supports various connector types including SC, FC, ST, and LC, with customization available upon request.
Key Features
  • Specifically designed for LC UPC connectors
  • Easy jig changing with simple, flexible operation
  • High efficiency: polishes 24, 40, or 48 connectors per cycle
  • 98%-100% first-pass yield for end face quality
  • IPC structure with independent compression for each connector
  • UPC return loss ≥55dB, insertion loss ≤0.20dB (typical)
  • Replaceable accessories extend service life
Technical Specifications
Model LC-UPC-24 LC-UPC-40 LC-UPC-48
Brand CLX
Connector Type LC UPC
End-face UPC
Ferrule Diameter 1.25mm
Capacity 24 positions 40 positions 48 positions
Insertion Loss ≤0.20dB
Return Loss ≥55dB (UPC) ≥55dB (APC) ≥55dB (APC)
Application Polishing assembled LC UPC connectors
Material Stainless Steel S136
Dimension (L*W*H) 174*174*26 mm
Net Weight / Gross Weight (kg) 1.5 kgs / 2.0 kgs
Suitable machines CLX-02E polishing machine, Seikoh Giken SFP-550 polishing machine, and similar models

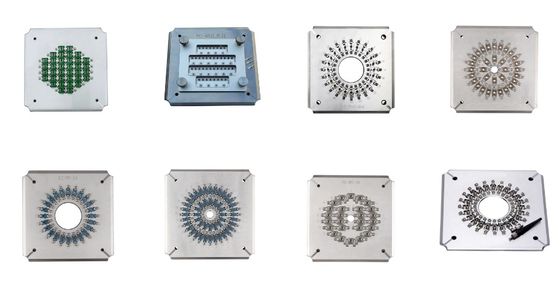

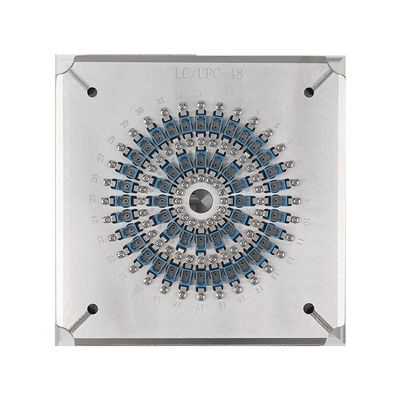

Fiber Optic Polishing Jig for LC UPC Connector with First Pass Yield 98-100% UPC Return Loss ≥55dB and Insertion Loss ≤0.20dB 0 Fiber Optic Polishing Jig for LC UPC Connector with First Pass Yield 98-100% UPC Return Loss ≥55dB and Insertion Loss ≤0.20dB 1
Polishing Performance
1. Polished Connector Ferrule Faces
Fiber Optic Polishing Jig for LC UPC Connector with First Pass Yield 98-100% UPC Return Loss ≥55dB and Insertion Loss ≤0.20dB 2
Delivers high-quality end-face polishing with no white spots or scratches, featuring clearly visible fiber edges.
2. ILRL Test Results
Fiber Optic Polishing Jig for LC UPC Connector with First Pass Yield 98-100% UPC Return Loss ≥55dB and Insertion Loss ≤0.20dB 3
Connector Type SM/UPC SM/APC MM/UPC
Insertion Loss ≤0.20dB ≤0.20dB ≤0.50dB
Return loss ≥55dB ≥60dB ≥30dB
3. Geometry Test Results
Fiber Optic Polishing Jig for LC UPC Connector with First Pass Yield 98-100% UPC Return Loss ≥55dB and Insertion Loss ≤0.20dB 4
NO. Parameters UPC Criterion APC Criterion
1. Radius of Curvature 5-25mm 5-12mm
2. Apex Offset 0-50μm 0-50μm
3. Fiber Height -100~+50μm -100~+50μm
4. Angle n/a 8.00+/-0.50°

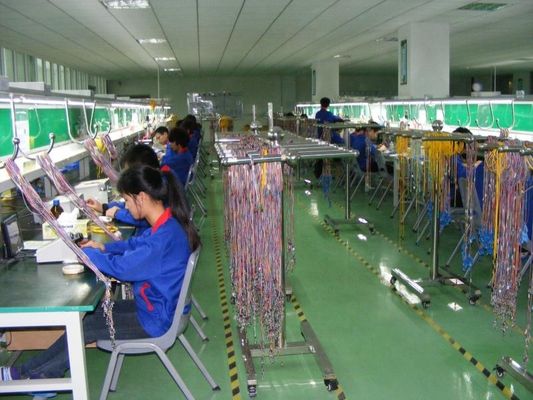

About Shenzhen Chuanglixun Optoelectronic Equipment Co., Ltd.

Established in 2010, we are an optical communications equipment company specializing in research, development, production, and technical services. We provide high-quality products, excellent after-sales service, and free technical support for fiber connector production challenges.

Fiber Optic Polishing Jig for LC UPC Connector with First Pass Yield 98-100% UPC Return Loss ≥55dB and Insertion Loss ≤0.20dB 5
Frequently Asked Questions
1. Are you a factory or a trader?
We are a factory.
2. What is your MOQ?
MOQ is 1 piece.
3. Do you provide sample services?
Yes, we provide samples.
4. How will you ship to me?
We typically ship via DHL or FedEx in 4-6 days, with options adjusted based on order quantity.
5. How do we pay?
We accept multiple payment methods including T/T and T/L.
6. How long is your product warranty?
1-year warranty covering free repairs (excluding consumables). After warranty, we provide cost-priced accessories.
7. Do you provide customized services?
Yes, we offer customization based on customer requirements.
