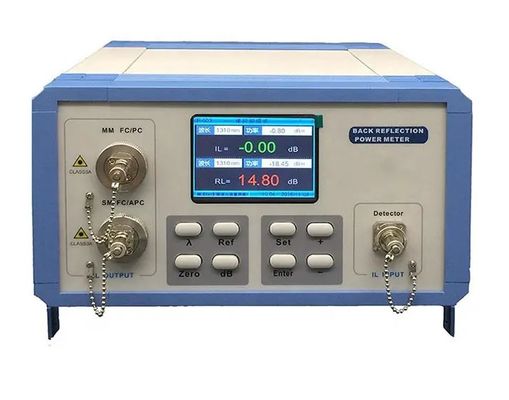

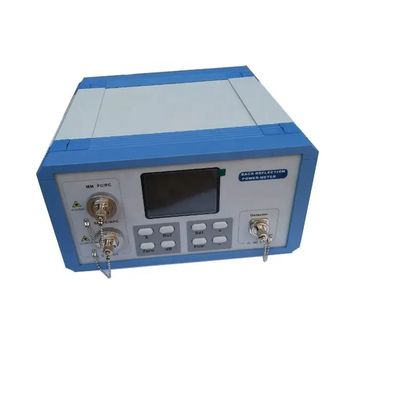

Hoge precisie invoegverlies retourverlies tester met 14,8 ~ 75dB meetbereik en 0,25dB nauwkeurigheid glasvezel teststation
Productdetails
| Meetbereik: | +3 ~ -75dBm | Oplossing: | ±0.3dB |
|---|---|---|---|
| Bedrijfstemperatuur: | +10℃ ~ +50℃ | Lichtbrongolflengte: | MM:850 nm/1300 nm SM: 1310/1550/650.850 1310/14 |
| Gewicht: | 3 kg | Golflengte: | 1310/1550nm |
| Optische connector: | FC/APC | De Waaier van het terugkeerverlies: | 14,8~75dB |
| Laserstabiliteit: | 0,05 dB (1 uur bij 25°C) | Meetnauwkeurigheid: | 0.25 dB |
| Golflengte bereik: | 800~1700nm | Gekalibreerde golflengte: | 850/1300/1310/1550nm |
| Fotodetector: | Ingaas | Weergavemodi: | dBm/dB/xW |
| Afmetingen: | 360X240X130mm | ||
| Markeren |
14,8 ~ 75dB retourverlies meetbereik glasvezel teststation,±0.3dB Resolution IL & RL Tester |
||
Productbeschrijving
Producthoogtepunten
